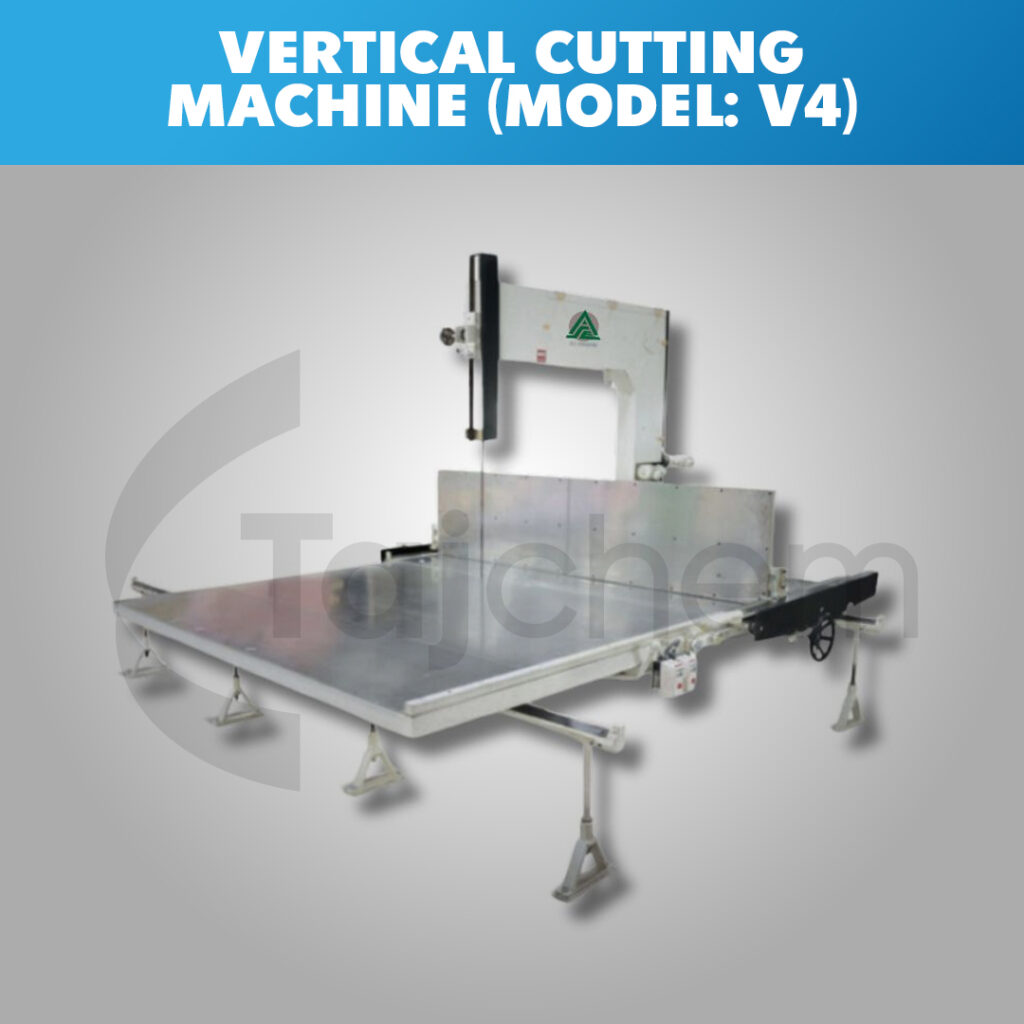

Vertical Cutting Machine (Model: V4)
Vertical Cutting Machine (Model: V4)
Note: For detailed product specifications, Technical Data Sheets (TDS), HS Codes, and pricing information, please contact us. Our dedicated team of experts will be pleased to assist you with your inquiry.
Product Description:
Tajchem vertical cutting machines are built to deliver reliable and precise trimming of flexible PU foam block sides and to resize large blocks into the required dimensions. They are also ideal for producing thick foam sheets and cutting sofa cushion components. These machines ensure a cutting accuracy of ±2 mm.
Standard Equipment:
- Stainless steel tabletop for smooth and effortless block movement
- Adjustable rest plate for accurate positioning
- Rigid table frame mounted on bearing slides for easy handling
- Manual table brake for quick stopping
- Slitting assembly fitted with dynamically balanced blade wheels
- Precisely engineered upper and lower band-knife guides ensure stable and accurate cutting
- Electric blade drive motor
- Motorized grinding system with adjustable cup stones for consistent blade sharpening
General Specifications:
GENERAL SPECIFICATIONS | MODEL V4 |
CUTTING HEIGHT | 1400mm |
CUTTING LENGTH | 2200mm |
TABLE INSIDE | 1220mm |
TABLE OUTSIDE | 1825mm |
POWER REQUIRED | 2.25hp |
SPACE REQUIRED | 4.2m x 5.5m |
APPROX. WEIGHT | 1200kg |
POWER SUPPLY | 415V AC 50Hz |
