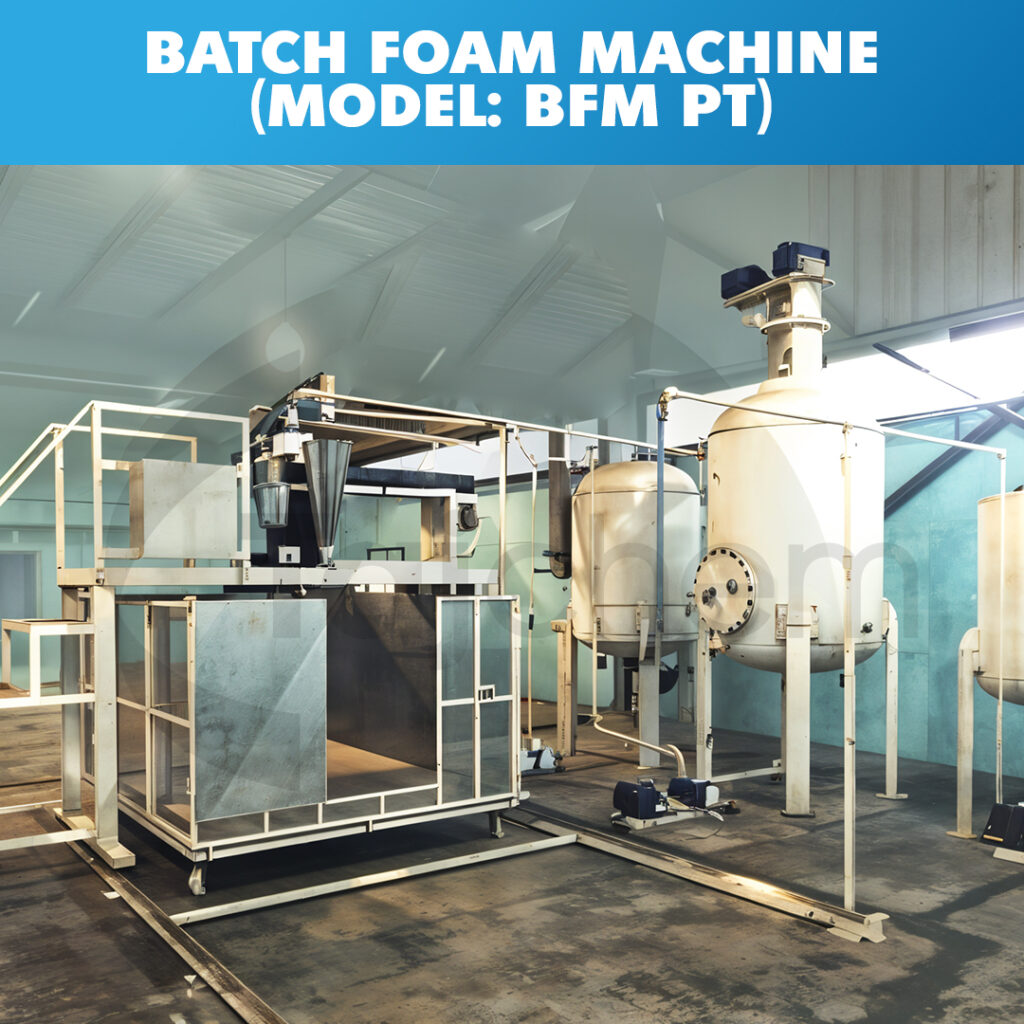

Optimized for High‑Convenience Foam Processing

The BFM PT model combines precise engineering with efficient automation to deliver convenient and consistent batch foam production.

This model features automated metering and dispensing systems for polyol and TDI, ensuring accuracy and reducing manual effort. A user-friendly control panel allows operators to enter chemical quantities directly in kilograms, making the process straightforward and repeatable.

With a production capacity of 30–40 blocks per 8-hour shift and a density range of 10 to 32, the BFM PT is designed for manufacturers who value both precision and ease of use.

Process Overview

• This model allows the operator to accurately meter the two primary chemicals – Polyol and TDI – using an automated system.
• Precise metering improves consistency and simplifies the production process, ensuring uniform foam quality.
• The required quantities of Polyol and TDI can be entered directly in kilograms on the control panel, making the operation user-friendly and efficient.

Standard Equipment

• Main machine with fixed tank, 100 L TDI pouring tanks, and polyol pouring funnel
• 10 HP mixing motor with AC frequency drive
• Mold for foam block (MS pipe frame with aluminum sides and wooden base)
• Track lines for sliding the machine frame in and out of the mold
• Polyol jacketed tank with motorized stirrer – 1500 L capacity
• TDI jacketed tank – 1000 L capacity
• Complete pump and pipeline system for accurate metering of polyol and TDI with essential valves
• 500 L water flushing tank with pump and pipeline
• 2 HP air compressor with 160 L air tank
• Control panel with digital counters for polyol and TDI, mixing controls, TDI pouring, and flushing functions
• Chemical quantities adjustable directly in kilograms via counters
• Space Required: 4m x 8m
• Power Required: 20KW
• Power Supply: 415 V AC 50 HZ
