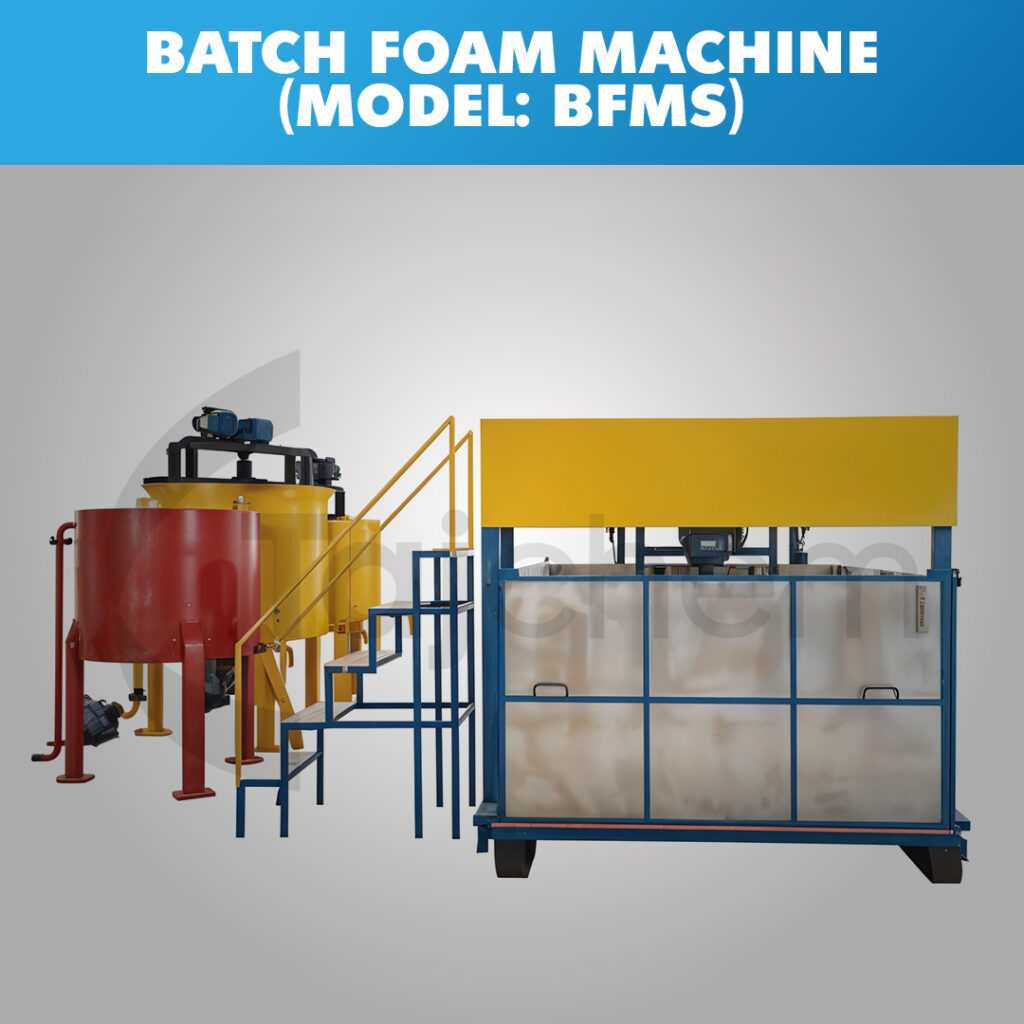

Versatile and Customizable Foam Block Production

The BFMS model is designed for flexible PU foam manufacturing, featuring a customizable mold system that accommodates different block sizes. Equipped with preset mixing speeds, an automated mixing timer, and integrated polyol and TDI tanks with loading pumps, it ensures precision, efficiency, and a smooth workflow. This machine is ideal for manufacturers who require flexibility and consistent foam quality.

Standard Equipment

• Block-by-block foaming process
• Density range: 10 to 32
• Automated timed mixing and pouring
• Production capacity: up to 40 blocks per 8-hour shift

Process Overview

• Pre-weighed water and TDI are loaded into their respective pouring tanks located above the main mixing vessel.
• Polyol and catalyst are weighed manually and poured into the mixing vessel, and Speed 1 is engaged to begin mixing.
• From the control panel, the TDI + Water valves are opened, allowing the mixture to flow into the mixing vessel.
• Once the liquid components are added, Speed 2 is activated for thorough blending.
• The mixed chemicals are then automatically discharged into the mold.
• The mold opening is closed manually.
• After 5–10 minutes, the foam block is ready to be demolded.
