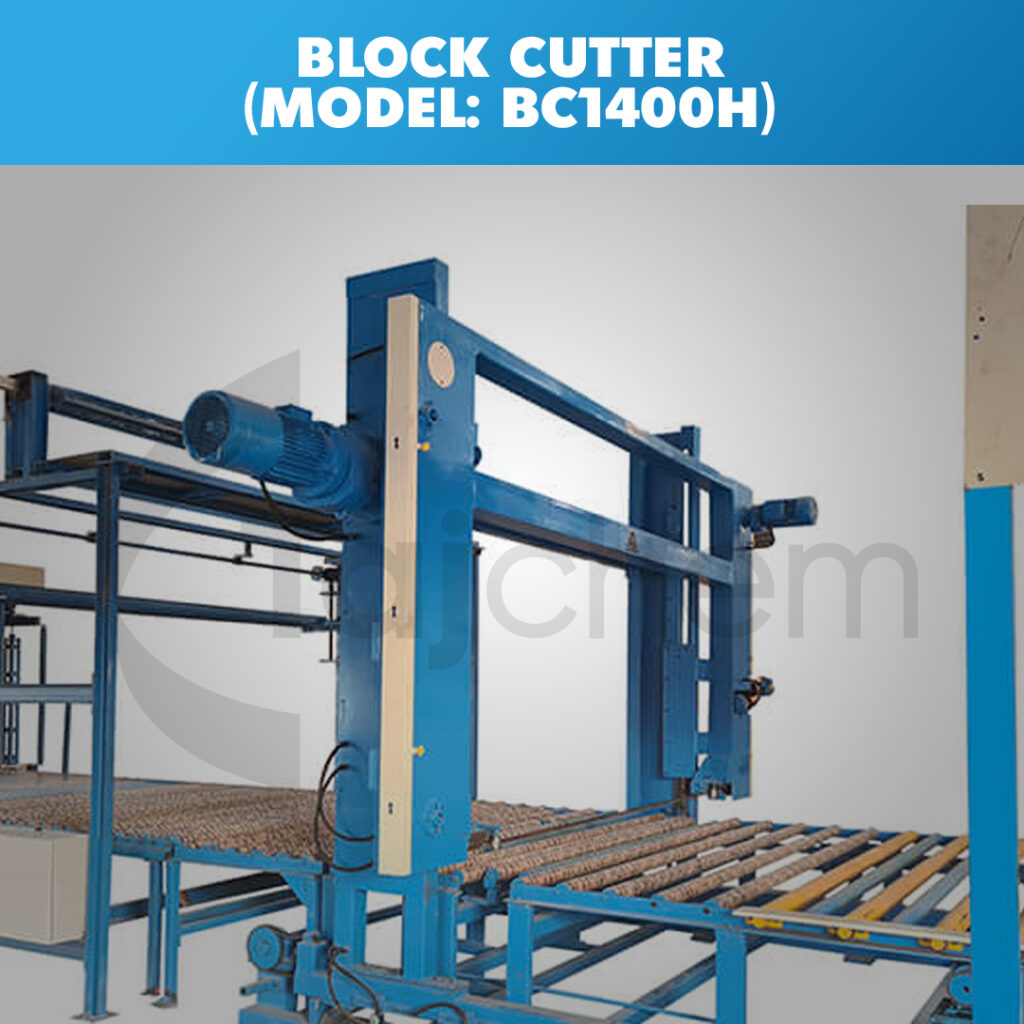

Block Cutter (Model: BC1400H)
Note: For detailed product specifications, Technical Data Sheets (TDS), HS Codes, and pricing information, please contact us. Our dedicated team of experts will be pleased to assist you with your inquiry.
Product Description:
The machine is equipped with a bi-directional guillotine cutting system, enabling it to cut alternately from top to bottom and bottom to top. Cutting speed can be easily adjusted using the AC drive provided in the control panel.
This PLC-controlled machine is positioned at the end of a slabstock foaming line to deliver accurate block cutting, with the block length set by an adjustable photo sensor.
An integrated motorized roller conveyor automatically moves the cut foam blocks onto a subsequent conveyor or trolley, improving workflow and reducing manual handling.
| SPECIFICATION | MODEL |
|---|---|
|
CONSTRUCTION |
The machine is welded steel construction |
|
BAND KNIFE
|
Runs over four dynamically balanced knife wheels
|
|
CUTTTING HEIGHT
|
1.4 meter |
|
CUTTING LENGTH
|
2.2 meter
|
|
OPERATION |
Automatic (PLC Controlled)
|
|
POWER REQUIRED
|
10KW |
|
SPACE REQUIRED
|
4m x 5m x 4.5m Height
|
|
POWER SUPPLY
|
410V AC 50HZ
|
A PLC-operated guillotine cutting unit designed to be positioned at the end of a slabstock foaming line, with block length accurately managed through an adjustable photo sensor.
Key Specifications and Features:
- Maximum cutting height: 1400 mm
- Maximum cutting width: 2200 mm, with lift/lower movement driven by a rack-and-pinion mechanism
- Integrated roller conveyor for automatic transfer of cut blocks
- Forward movement synchronized with the foaming line conveyor
- AC variable frequency drive for smooth lift motor operation
- Digital block length setting with encoder feedback
- Bi-directional cutting: top-to-bottom and bottom-to-top
- Equipped with a toothed scalloped-edge blade for clean, efficient cutting
Applications
| No. | ITEMS DESCRIBE | INDEX |
|---|---|---|
|
01 |
Bulk Density(g/cm3) |
0.20 – 0.25 |
|
02 |
Bulk Density(g/cm3) |
0.20 – 0.25 |
