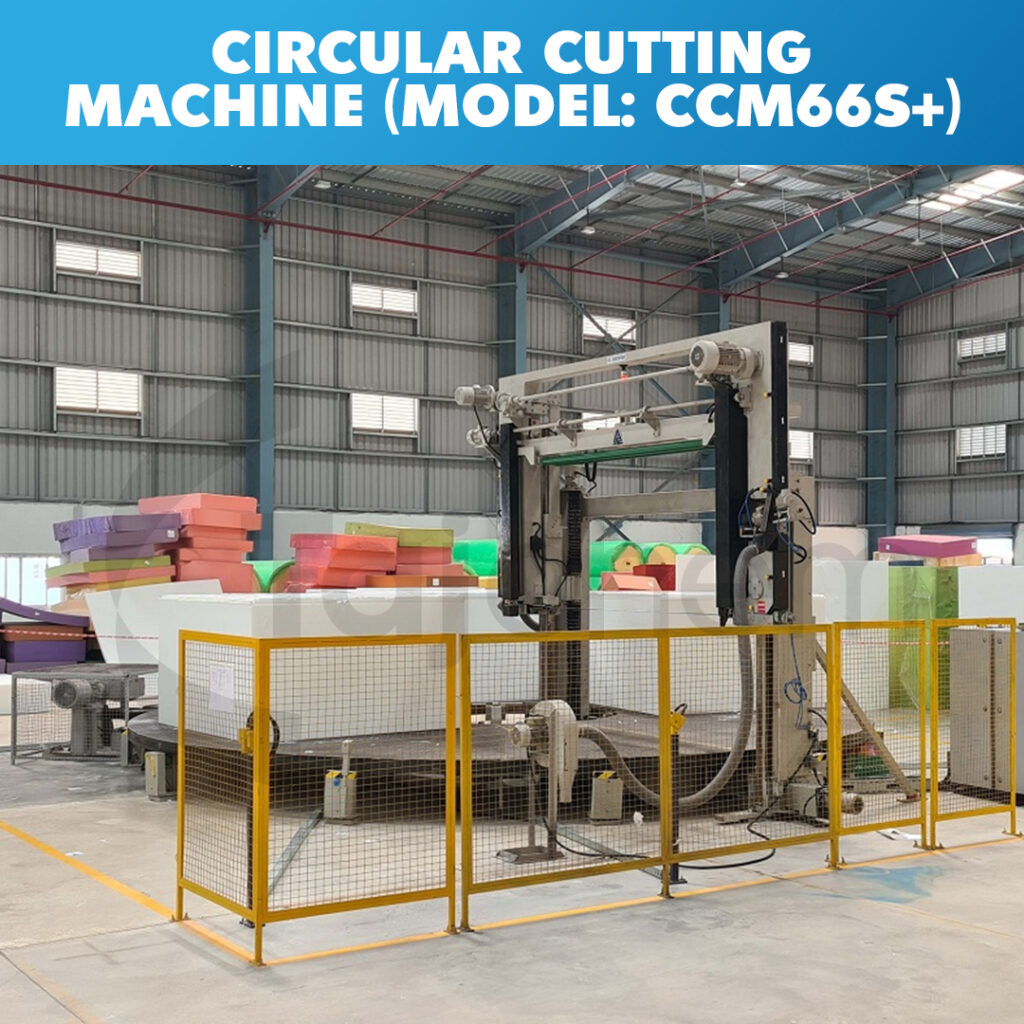

The S-Plus series circular cutting machines from Tajchem are engineered to deliver precise and dependable cutting of flexible PU foam blocks. These machines can produce a wide range of thicknesses, from large mattress blocks (100–200 mm) down to thin sheets as fine as 1.5 mm.

Powered by a variable-speed AC motor, the rotary table holds and rotates the foam blocks. The slitting head, driven by an electric motor through high-precision ball screws, automatically lowers to the preset thickness after each full rotation, creating uniform stacks of sheets. Cutting is performed by a continuous band-knife blade running on four dynamically balanced wheels, ensuring smooth, clean, and accurate cuts.

Standard Equipment

• Heavy-duty carousel table with an abrasive-coated aluminum top
• Circumferential friction-driven table rotation
• Cutting head fitted with four balanced wheels and a pre-tensioned blade guide
• Rigid vertical pillars equipped with ball screws for precise head movement
• Motorized automatic grinding system with dust extraction
• High-capacity vacuum system at the cutting zone
• PLC-based control panel with touchscreen HMI
• Complete motor and wiring assemblies
• Standard accessories: 1 blade, 2 grinders
• Standard toolkit
• Power requirement: 27 HP
• Floor space required: 9 m × 9 m
• Maximum stacking height: 1300 mm

Performance Features

• Adjustable table speed from 0 to 10 RPM
• Automatic grinder engagement/disengagement with blade activation
• Reverse function via foot pedal for easier loading and unloading
• 5 HP geared blade motor with variable speed drive
• Top pressure roller for handling high-density foam blocks during cutting
• Digital speed display of the rotating table
• Multi-recipe cutting programs with sheet count display
• Single-block mode: After a cut is complete, table speed increases automatically until the block returns near the blade for the next cut
• Built-in instruction manual and troubleshooting guide on HMI
• Real-time blade height indication on HMI

Safety Features

• Sensor-based electronic safety fence surrounding the table
• Protective covers on all moving components
• Blade breakage detection with automatic machine stop
• Clear warning labels and safety markings
• Instant table stop in the event of a power failure
• Emergency stop push-button

Construction

The machine features a robust welded steel frame. The carousel table consists of inner and outer ring sections reinforced with MS pipes and rotates on heavy-duty rollers. The cutting head travels vertically along rigid pillars, powered by precision ball screws to ensure accurate positioning.

Blade Drive

The band-knife blade runs over four PU-coated, dynamically balanced wheels mounted on adjustable bearing hubs. The system is driven by a geared motor. The 30 mm wide blade passes through a pre-tensioned guide to maintain perfect alignment and stability during the cutting process.
