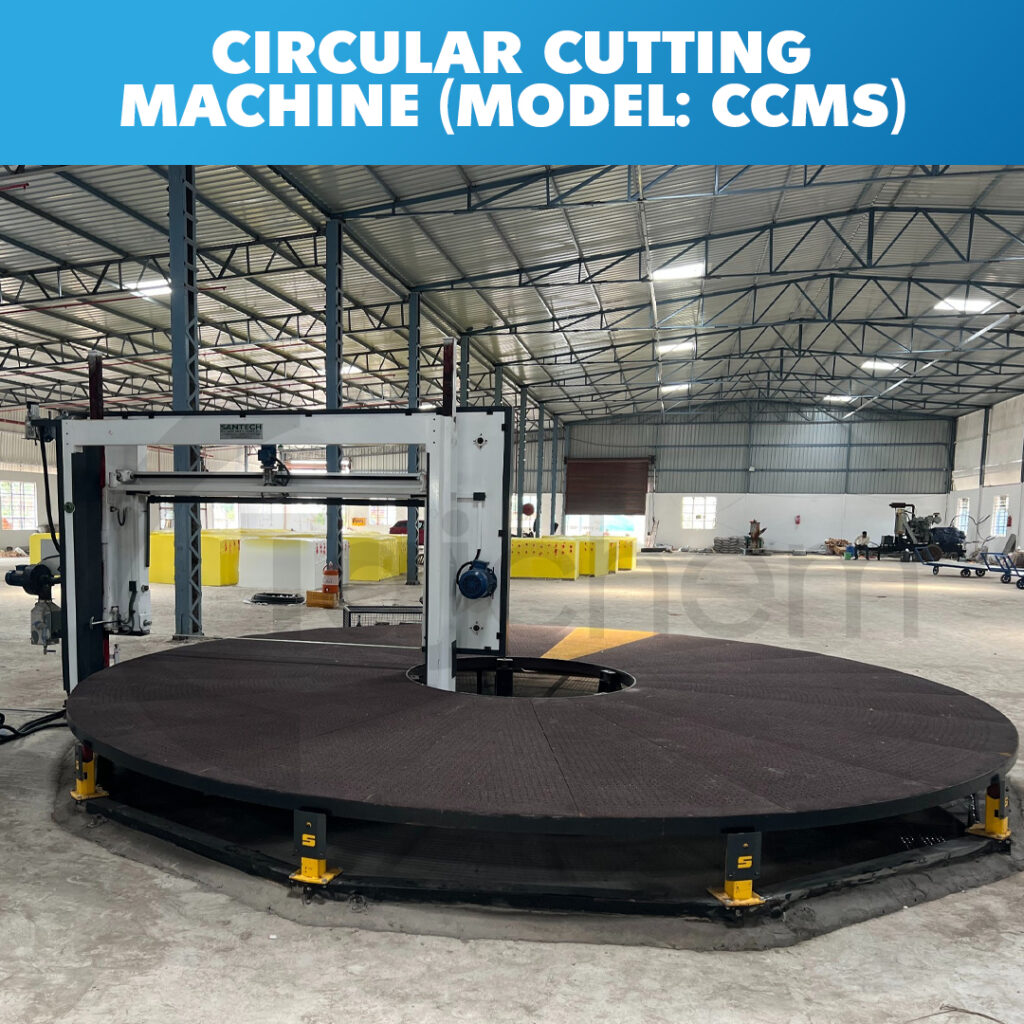

Designed for high-capacity production facilities with extensive cutting demands, this advanced carousel machine delivers fast, precise slicing, making it especially valuable for cutting low-density foam sheets down to 1.5 mm thickness.

Construction

Built with a heavy-duty welded steel frame, the machine features a rotary table composed of solid inner and outer rings connected by mild steel pipes. The table rotates on heavy-duty rollers, while the cutting assembly remains stationary, moving vertically on sturdy pillars to ensure stable and accurate cuts.

Standard Features

• Rotary slitting table with friction-coated tabletop
• Circumferential friction drive enabling smooth, gradual start and stop of the table
• Variable table speed control from 0 to 10 rpm via a variable frequency drive
• Slitting unit equipped with four dynamically balanced blade wheels
• Motorized vertical slitting head with precise raising and lowering mechanism
• PTFE-coated (Teflon) tensioned blade guide
• Single-edge ground band-knife. Band-knife width: 30mm
• Automatic blade grinding system with durable CBN cup stones
• Dust extraction system for grinding area
• Integrated vacuum system in the cutting zone for foam stabilization
• Adjustable slitting angle from 0 to 5 degrees via electric controls
• PLC-based control panel with full-color touchscreen
• Preselection of sheet thickness (1.5 to 200 mm) via touchscreen or vernier control
• Preselection of table revolutions (1 to 999) displayed digitally
• Powerful vacuum system in slitting area – 3hp x 4
• Electric blade drive geared motor – 3hp
• Blade breakage detection with automatic shutdown
• Blade operation indicator light

Blade Drive System

The band knife operates on four PU-coated, precision-balanced wheels mounted on adjustable bearing hubs and powered by an electric motor. The 30 mm-wide blade runs through a pre-tensioned knife guide, ensuring stability and accurate positioning throughout the cutting process.

Key Benefits

• Heavy-duty frame built for durability and precision
• High-speed cutting up to 10 revolutions per minute for increased productivity
• Automatic blade grinding system extends blade life with consistent edge quality
• Stable edge system maintains blade position, reducing wear
• Digital display of cutting speed and blade height for easy monitoring
• Footswitch-controlled single-point loading and unloading for operator convenience
• Large color touchscreen includes built-in user manual
• Safety features include immediate table stop on power loss
• Aluminum tabletop with friction coating improves material handling
• Top pressure roller enhances cutting of high-density foam blocks
• Multi-recipe program supports various cutting profiles

Single Block Mode

For small batch jobs, the table adjusts speed dynamically — moving slowly only when cutting a block and speeding up between cuts — optimizing cycle times and saving operational time.

Safety Features

• Safety barriers surrounding the blade area
• Covers protecting all moving parts
• Blade enclosed except at the cutting edge
• Blade ON indicator light
• Emergency stop button on control panel
• Blade breakage detection with automatic shutdown

Technical Specifications

• Power supply: 415 V AC (custom 220 V / 60 Hz available on request)
• Cutting and stacking height: 1400 mm
• Total power consumption: 24 HP / 18 kW
