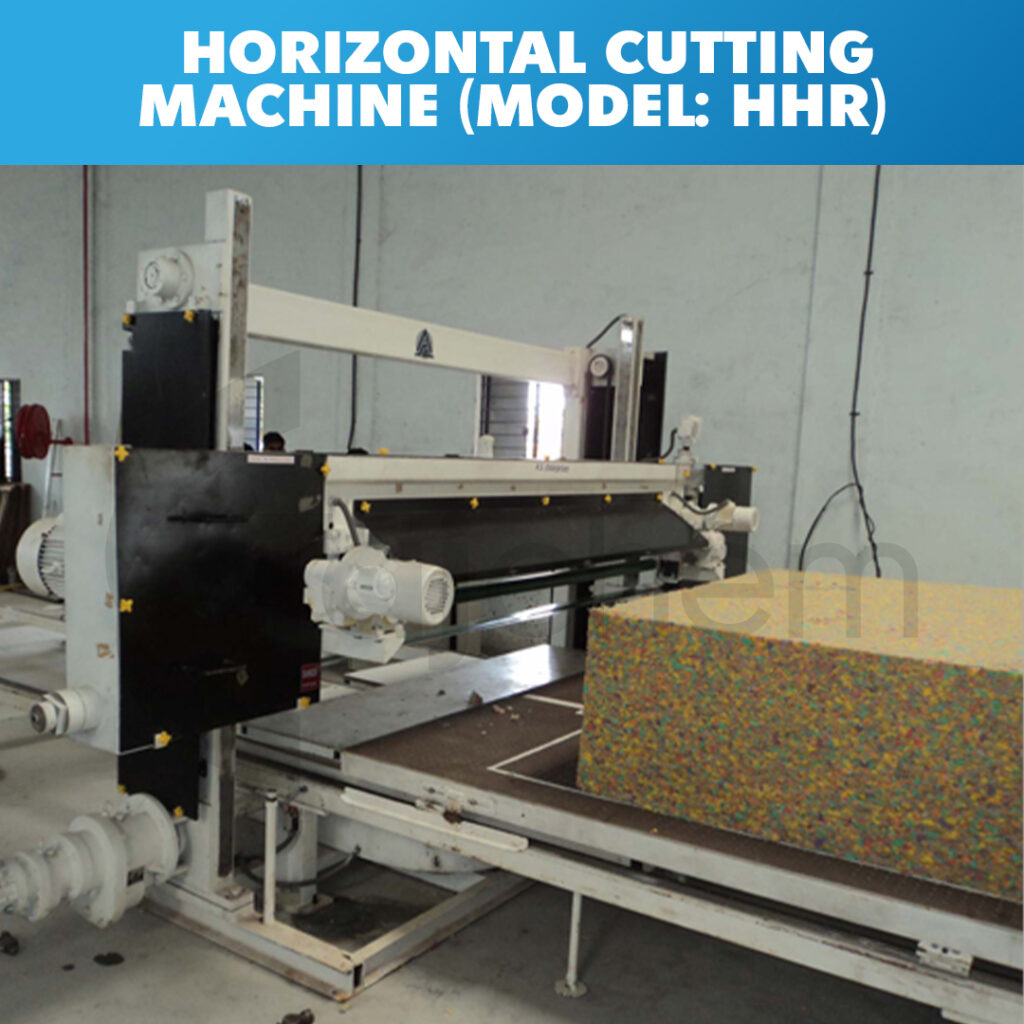

Horizontal Cutting Machine (Model: HHR)

Products . Foam Machines . Horizontal Cutting Machine (Model: HHR)

Horizontal Cutting Machine (Model: HHR)

Applications FOAM MANUFACTURING

Price: Contact us for Pricing

Port: Contact us for Destination Port

Payment terms: TT/LC

TDS: Available on request

Note: For detailed product specifications, Technical Data Sheets (TDS), HS Codes, and pricing information, please contact us. Our dedicated team of experts will be pleased to assist you with your inquiry.

Product Description:

This heavy-duty horizontal cutting machine is specifically engineered for high-density flexible and bonded foams, capable of producing sheets with thicknesses ranging from 10 mm to 200 mm.

The machine is PLC-controlled and operated via an intuitive touchscreen interface for ease of use.

Cutting is performed using an endless band knife that runs over two dynamically balanced wheels, ensuring smooth, precise, and consistent cuts.

The cutting table moves in a straight, linear path during operation. After each cut, the finished sheets are manually removed from the table.

General Specifications:

GENERAL SPECIFICATIONS	MODEL HHR
CONSTRUCTION	The cutting unit is welded steel construction. The table is made from heavy steel pipes and slides over track lines covered with hardened steel. The table top is made of 8mm thick aluminum sheets coated with special friction material.
BAND KNIFE	50MM wide band knife runs over balanced knife wheels. Motorized grinders sharpen the blade continuously, during cutting operation.
KNIFE GUIDE	It is pre-tensioned and coated with P.T.F. E
THICKNESS	Thickness can be preset with the help of digital display in the range of 0 to 999MM in steps of 0.1MM. The accuracy and range of thickness depend on the type of foam.
TABLE CAPACITY	The machine can take up to 4 blocks of 1828mm x 915mm (High-capacity tables are also available as per customer’s selection).
POWER REQUIRED	25 HP
SPACE REQUIRED	12m x 5m
POWER SUPPLY	410V AC 50Hz
CUTTING WIDTH	2M
CUTTING HEIGHT	1M
CUTTING ANGLE	Motorized adjustment from the control panel.

Applications

No.	ITEMS DESCRIBE	INDEX
01	Bulk Density(g/cm3)	0.20 – 0.25
02	Bulk Density(g/cm3)	0.20 – 0.25
