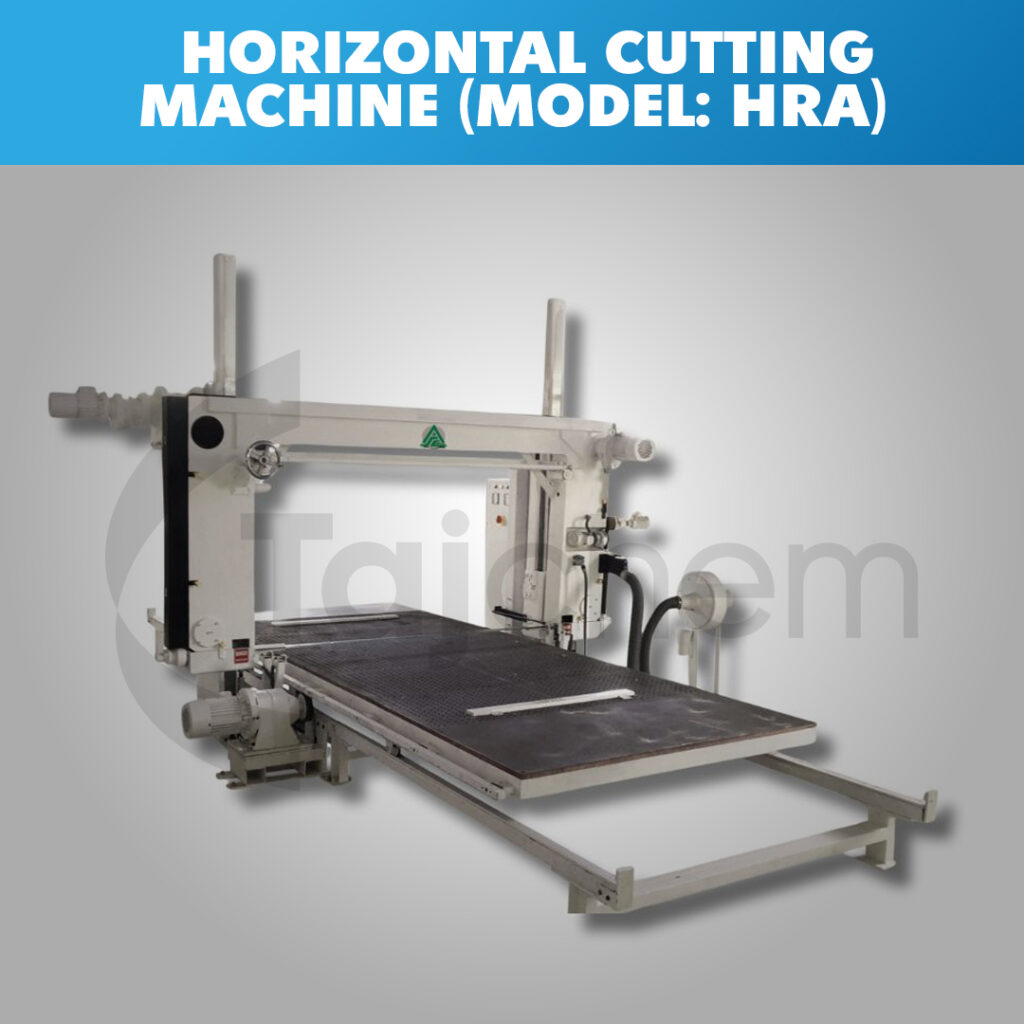

Horizontal Cutting Machine (Model: HRA)
Products . Foam Machines . Horizontal Cutting Machine (Model: HRA)
Horizontal Cutting Machine (Model: HRA)
Note: For detailed product specifications, Technical Data Sheets (TDS), HS Codes, and pricing information, please contact us. Our dedicated team of experts will be pleased to assist you with your inquiry.
Product Description:
Horizontal cutting machines are designed to efficiently convert PU foam blocks into sheets with thicknesses ranging from 2.5 mm to 200 mm.
The system is PLC-controlled and offers fully automatic operation with a one-touch start from any position, simplifying the cutting process.
Cutting is performed using an endless band knife that runs over four dynamically balanced wheels, ensuring a smooth, clean-cut surface.
During operation, the table moves back and forth in a straight, linear motion, and after each cut, the cutting head lifts slightly to allow for unobstructed movement of the foam on the table.
General Specifications
GENERAL SPECIFICATIONS | MODEL HRA |
CONSTRUCTION | The cutting unit is welded steel construction. The table is made from steel pipe and slides over track lines covered with hardened steel. The top is made of wooden to boards coated with special friction material |
BAND KNIFE | 30MM wide band knife runs over dynamically balanced knife wheels. Motorized grinders sharpen the blade continuously, during cutting operation. |
KNIFE GUIDE | It is pretensioned and coated with P.T.F.E |
THICKNESS | Thickness can be preset with the help of digital display in the range of 0 to 999MM in steps of 0.1MM |
TABLE CAPACITY | The machine can take up to 4 blocks to 1828mm x 915mm (High-capacity tables are also available as per customer’s selection) |
POWER REQUIRED | 12 H. P / 9 KW |
POWER SUPPLY | 415V AC 50 HZ |
SPACE REQUIRED | 9m x 4m |
Applications
| No. | ITEMS DESCRIBE | INDEX |
|---|---|---|
|
01 |
Bulk Density(g/cm3) |
0.20 – 0.25 |
|
02 |
Bulk Density(g/cm3) |
0.20 – 0.25 |
