Re-Bonding Machine
Products . Foam Machines . Re-Bonding Machine

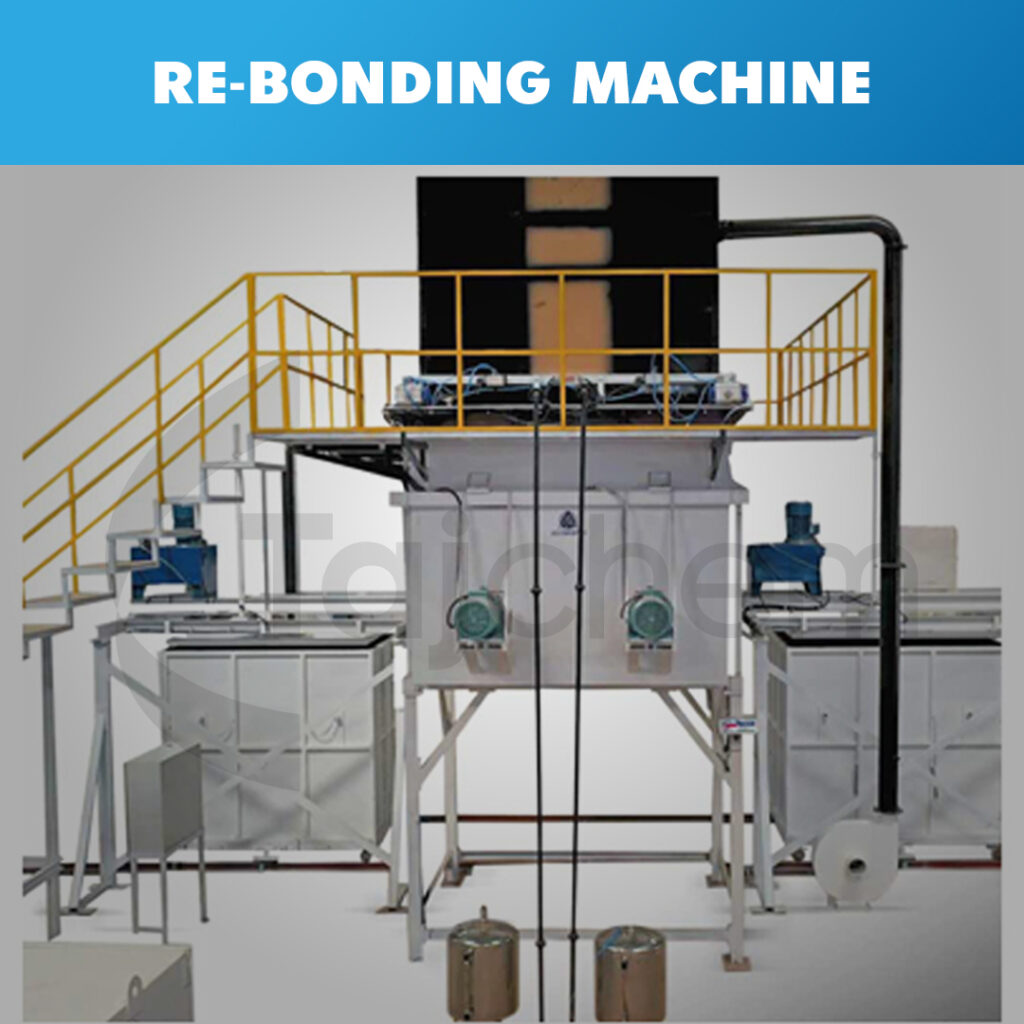

Re-Bonding Machine
Note: For detailed product specifications, Technical Data Sheets (TDS), HS Codes, and pricing information, please contact us. Our dedicated team of experts will be pleased to assist you with your inquiry.
Product Description:
The re-bonding machine is designed for flexible PU foam including 6x6ft mold one 25 hp shredding machine, one mixer and one pressing station.
- Makes Bonded Foam Blocks from Shredded Foam Scrap Material.
- A Very Heavy-Duty Machine Including Mixer, Mold & Press.
- Provision for Releasing Steam into the Mold.
- Variable Size Mold can be Made Against Order.
This is a foam re-cycling machine which makes bonded foam blocks from shredded scrap.
STANDARD EQUIPMENT
- Heavy duty twin mixer
- Heavy duty mold
- Heavy duty hydraulic press
- Variable size mold can be made against order.
- Transfer blower with MS pipe line
- SS Tank for Binder with pipeline.
- Platform and stair case for easy operation and maintenance.
General Specifications
MIXER TANK CAPACITY | 10m3 |
OUTER DIA | 225cm |
LENGTH | 300cm |
WALL THICKNESS | 6mm |
MIXER MOTOR | 10 HP with gear reducer |
MIXING SPEED | 40 RPM |
PRESSING SYSTEM | By mechanical motorized screw system. Also assist in De-molding the block 5 hp |
PRESSING MOTOR MOLD DIMENSION (INNER PLATE ALUM) | 205x205x180cm |
STEAM SYSTEM | From bottom |
SHREDDED FOAM TRANSFER BLOWER | 3hp |
- POWER REQUIRED: 30HP+40HP (SHREDDING MACHINE)
- SPACE REQUIRED: 10M X 10M
- HEIGHT: 6M, WITH TOP WEIGHING CHAMBER 7M
- POWER SUPPLY: 415V AC 50HZ
Optional Equipment:
Top Weighing Chamber | This is made on top of the mixing chamber having pneumatic door & load cell for displaying the weight of shredded material |
Boiler | Highly fuel-efficient boiler with environment safety features |
Applications
| No. | ITEMS DESCRIBE | INDEX |
|---|---|---|
|
01 |
Bulk Density(g/cm3) |
0.20 – 0.25 |
|
02 |
Bulk Density(g/cm3) |
0.20 – 0.25 |
