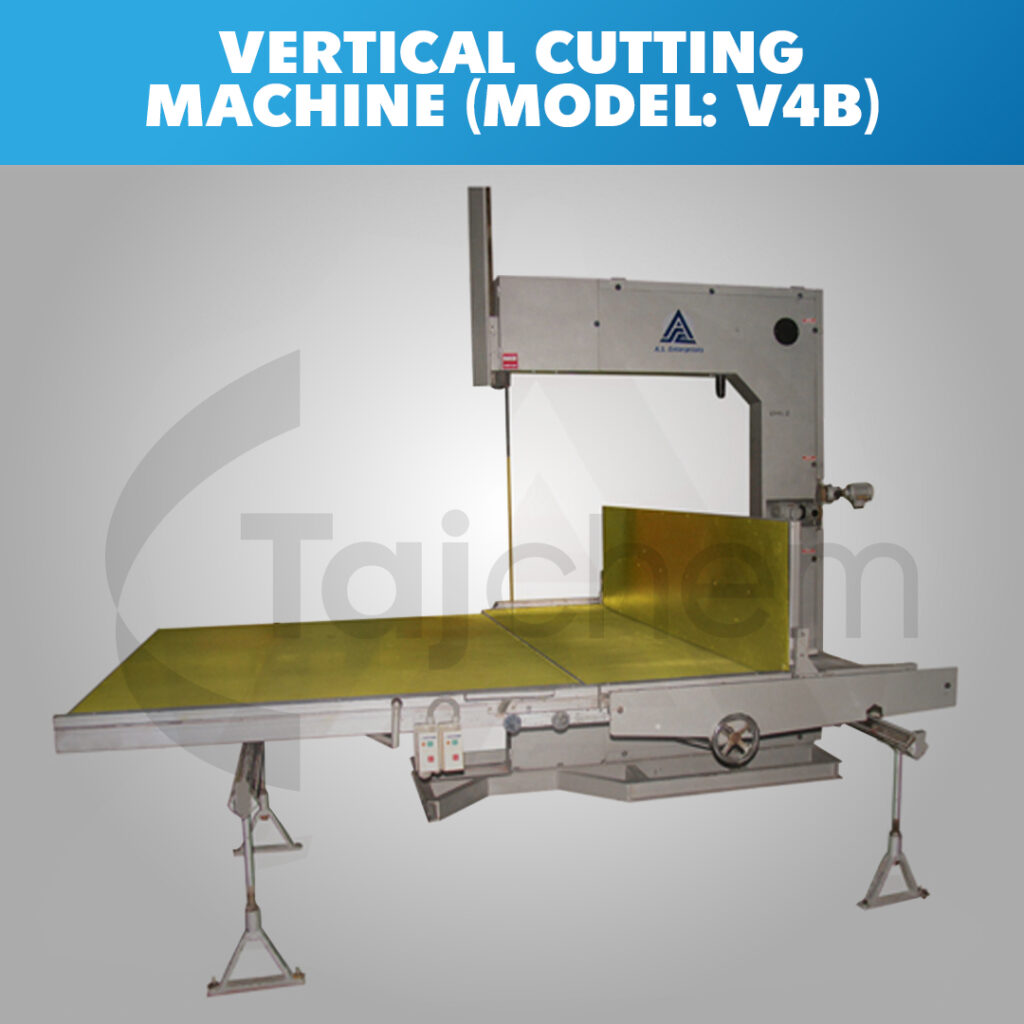

Vertical Cutting Machine (Model: V4B)
Note: For detailed product specifications, Technical Data Sheets (TDS), HS Codes, and pricing information, please contact us. Our dedicated team of experts will be pleased to assist you with your inquiry.
Product Description:
The V4B model of the Basic Vertical Cutting Machine is engineered to cut large PU foam blocks into smaller sections and to trim the edges of flexible PU foam blocks with accuracy. This vertical band saw delivers a cutting precision of ±2 mm, making it suitable for reliable block sizing and edge finishing.
Standard Equipment Includes:
- Adjustable side supports for height control
- Laminated wooden cutting table
- Slitting section with dynamically balanced blade wheels
- Electric motor for driving the blade
- Motorized grinding attachment
- Table frame mounted on bearing slides for smooth, easy operation
- Upper and lower band-knife guides for stable blade tracking
General Specifications
| GENERAL SPECIFICATIONS | MODEL V4-B |
|---|---|
|
CUTTING HEIGHT |
1200mm
|
|
CUTTING LENGTH |
2200mm
|
|
TABLE INSIDE |
1200mm
|
|
TABLE OUTSIDE |
1828mm
|
|
POWER REQUIRED |
2.25hp
|
|
SPACE REQUIRED |
4.2m x 5.5m
|
|
APPROX. WEIGHT |
1200kg |
|
POWER SUPPLY |
415V AC 50Hz
|
